Insulation Pipe Production Line

Insulation Pipe Extruder

Podstawowe informacje

Miejsce pochodzenia: Qingdao, Chiny

Nazwa handlowa: Huashida

Zapłata

Czas dostawy: 45-90 dni

Galeria

Insulation Pipe Production Line Water Supply Pipe Municipal Engineering Black Jacket Insulation Pipe Extruder

opis produktu

Insulation pipe production line Water supply pipe Municipal engineering Black jacket insulation pipe extruder

Basic Info.

Model NO.

HSD

Screw No.

Single-screw

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008

Customized

Condition

New

After-sales Service

1 Year

Pipe Material

PE, HDPE

Calibration Method

Vacuum Calibration

Cooling Method

Water

Diameter Range

110-2000 mm

Transport Package

Standard Package

Specification

ISO9001: 2008

Trademark

HSD

Origin

Qingdao China

HS Code

8477209000

Production Capacity

50 Sets/Year

Product Description

Insulation Pipe Production Line Water Supply Pipe Municipal Engineering Black Jacket Insulation Pipe Extruder 420-2000 mm

Polyurethane Foam Pre-insulated Pipe HDPE Casing Jacket Pipe Machine is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as a protective cover of PU foam thermal Pre-insulated Pipe according to international standards.
The HDPE shell pipe is produced by vacuum calibrating method with smooth internal and external walls, long service life, good anti-corrosion insulation and mechanical performance.

Insulation Pipe Production Line Water Supply Pipe Municipal Engineering Black Jacket Insulation Pipe Extruder 0

Production range: 110-2000mm (by different models)

Production line composition:
-1 set Vacuum loader
-1 set Hopper dryer
-1 set High-efficiency single screw extruder
-1 set Vacuum calibration table

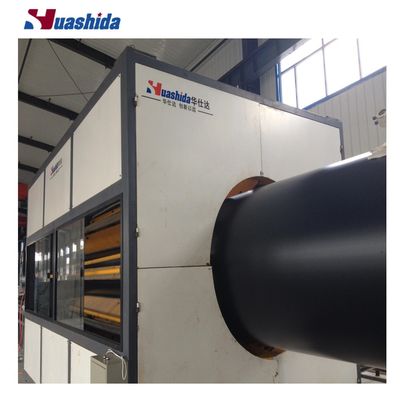

-1 set Water spraying tank

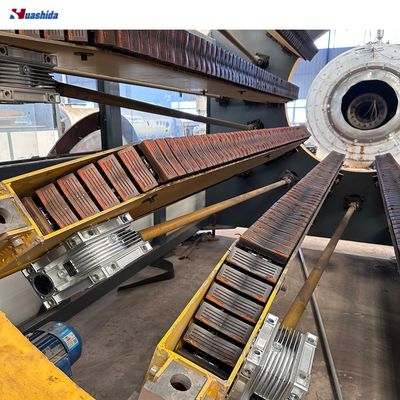

-1set Hauling machine
-1 set Cutting machine
-1 set Discharging Frame

Style	PE-110/600	PE-365/760	PE-655/1380	PE-960/1680	PE-1054/1860
Main Extruder	SJ-75/33	SJ-90/33	SJ-120/33	SJ-150/33	SJ-150/33
Pipe diameter	Φ110-600mm	Φ365-760m	Φ655-1380mm	Φ960-1680mm	Φ1054-1860mm
Capacity	250-350kg/h	400-500kg/h	700-900kg/h	1000-1200kg/h	1000-1250kg/h
Installed power	160kw	240kw	480kw	580kw	580kw
Length	26m	32m	36m	40m	45m

Insulation Pipe Production Line Water Supply Pipe Municipal Engineering Black Jacket Insulation Pipe Extruder 1

Insulation Pipe Production Line Water Supply Pipe Municipal Engineering Black Jacket Insulation Pipe Extruder 2

Insulation Pipe Production Line Water Supply Pipe Municipal Engineering Black Jacket Insulation Pipe Extruder 3

-small dimension
-high degree of automation, can be operated by one person, saving labor costs.
-long service life.
-high-efficiency extruder gives larger output and stable performance.
-pipe wall is average and smooth
-no waste of raw material
-once forming. No need to trim the edge.
Insulation Pipe Production Line Water Supply Pipe Municipal Engineering Black Jacket Insulation Pipe Extruder 4

Insulation Pipe Production Line Water Supply Pipe Municipal Engineering Black Jacket Insulation Pipe Extruder 4

Insulation Pipe Production Line Water Supply Pipe Municipal Engineering Black Jacket Insulation Pipe Extruder 5

Insulation Pipe Production Line Water Supply Pipe Municipal Engineering Black Jacket Insulation Pipe Extruder 6

Insulation Pipe Production Line Water Supply Pipe Municipal Engineering Black Jacket Insulation Pipe Extruder 7

Insulation Pipe Production Line Water Supply Pipe Municipal Engineering Black Jacket Insulation Pipe Extruder 8

Insulation Pipe Production Line Water Supply Pipe Municipal Engineering Black Jacket Insulation Pipe Extruder 9

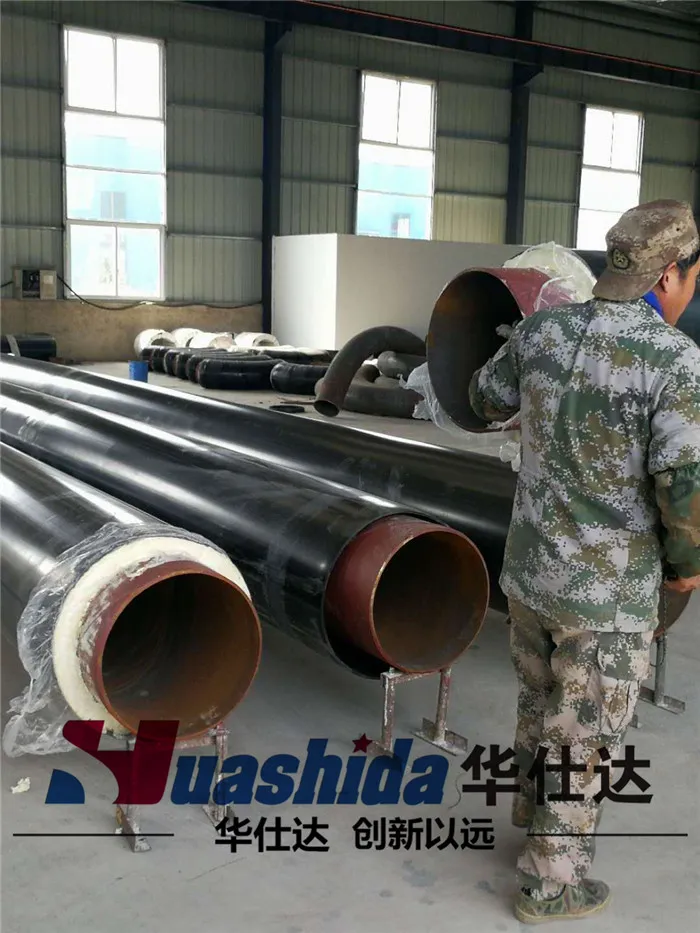

Our machines make products what are widely used as
jacket pipe of PU foam insulation pipe in municipal heating pipe system;
municipal water supplying and drainage pipeline;
oil and gas pipeline;
pipe joints of plastic drainage water pipes,
PU foam insulation pipelines,
2PE/3PE oil and gas pipelines;
Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;
