PU Foaming Insulation Pipe Making Machine

HDPE Jacket Extrusion Making Machine

Podstawowe informacje

Miejsce pochodzenia: Qingdao, Chiny

Nazwa handlowa: huashida

Orzecznictwo: CE, ISO9001:2008

Zapłata

Szczegóły pakowania: Standardowy pakiet

Czas dostawy: 60 DNI

Zasady płatności: T/T, L/C, Western Union

Możliwość Supply: 30 zestawów/rok

Galeria

PU Foaming Insulation Pipe Making Machine With HDPE Jacket Extrusion

opis produktu

Our fully automated production line is specially designed for manufacturing polyurethane (PU) foam insulated pipes with diameters ranging from Φ48-630mm. By integrating multiple processes including outer protective pipe extrusion and insulation material pouring into one continuous operation, this system ensures high production efficiency while maintaining consistent product quality. The equipment guarantees perfect bonding between the inner pipe, insulation layer, and outer protective jacket, making it ideal for various insulated pipeline applications.
PU Foaming Insulation Pipe Making Machine With HDPE Jacket Extrusion 0

Fully automated continuous production process
High efficiency with stable product quality
Precise foam density control for optimal insulation
Dual protection: epoxy anti-corrosion coating + HDPE outer jacket
Accommodates multiple pipe diameters from Φ48-325mm

Technical Specifications

Parameter	Specification
Pipe Diameter Range	Φ48-630mm
Total Power	Approx. 850KW
Power Supply	3-phase 380V(-10%~+5%), 50Hz
Cooling Water System	≤15ºC, 0.15-0.2MPa, 0.5m³/min
Operating Environment	Indoor, 0-30ºC, ≤85% humidity (non-condensing)

Production Process

Pipe loading → 2. External derusting → 3. Labeling → 4. Intermediate heating → 5. Epoxy coating → 6. Water cooling → 7. Coating inspection → 8. Adhesive application → 9. PE jacket extrusion → 10. PU foaming → 11. Foam leveling → 12. Pipe end cutting → 13. Water cooling → 14. Heat shrink sealing → 15. Finished pipe unloading

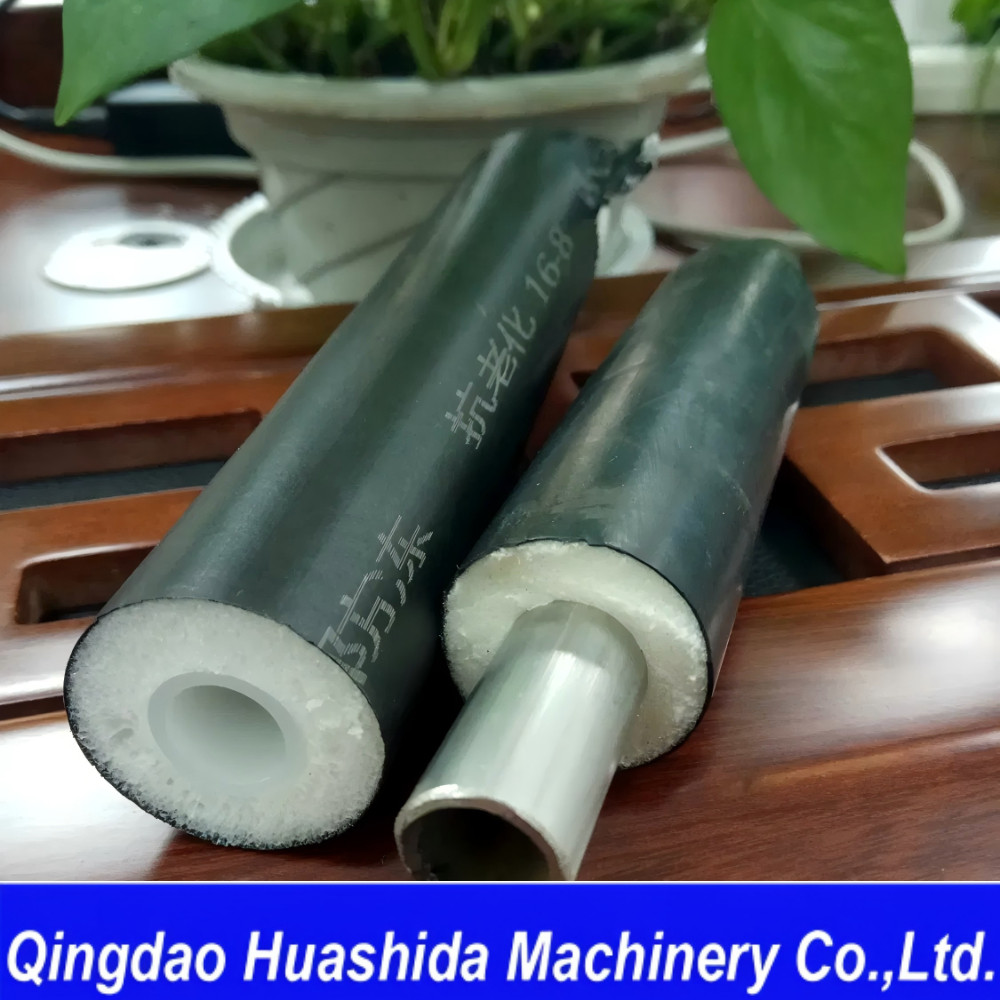

Raw Materials

HDPE pellets (outer protective pipe)
Hot melt adhesive (bonding layer)
Epoxy powder (anti-corrosion layer)
Polyurethane foam material (insulation layer)

Applications
√ District heating pipeline networks
√ Oil & gas transmission pipelines
√ Chemical industry insulated pipelines
√ Refrigeration and HVAC pipeline systems

Service & Support

Installation and commissioning services
Professional technical training
Comprehensive after-sales service system
Customized specifications available upon request

PU Foaming Insulation Pipe Making Machine With HDPE Jacket Extrusion 3

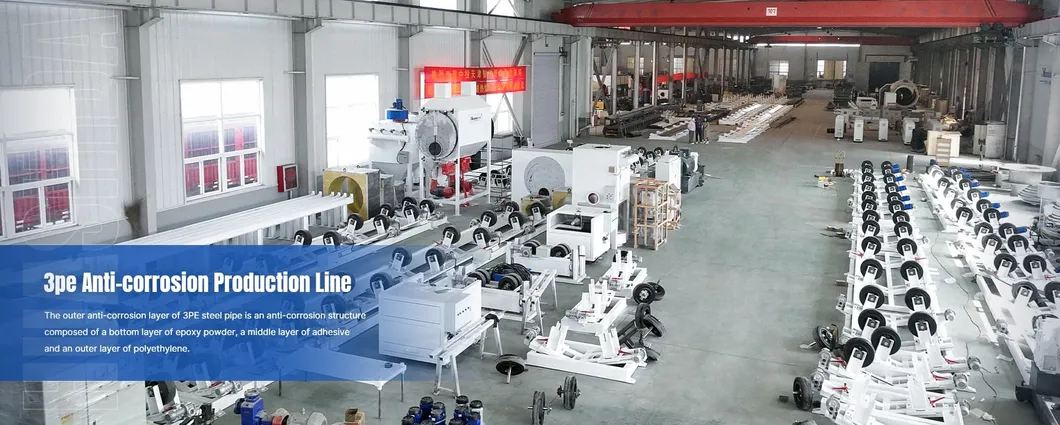

Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3PE anti-corrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development,

collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. by absorbing advanced technology home and abroad, after 20 years of endeavor we now rank one of the top 3 manufacturers in the industry in China. Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.
