Name: Flexible PU Foaming Pert Insulation Pipe Extruder Machinery for Underground Pipe System
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 20-350mm
Availability: InStock

cechy Galeria opis produktu Poprosić o wycenę

cechy

specyfikacje

trzy warstwy: Rura wewnętrzna + PU -POAM + HDPE Zewnętrzna

Wewnętrzna rura: Materiał PE-XA lub PE-RT II

Aplikacja: Używane do kanalizacji i drenażu w mieście

Nr śruby: Pojedyncza śruba

Podkreślić:

PE Insulation Pipe Extrusion Line

Pre-Insulated Pipe Extrusion Line

Pre Insulation Pipe Extrusion Line

Podstawowe informacje

Miejsce pochodzenia: Qingdao, Chiny

Nazwa handlowa: HUASHIDA

Orzecznictwo: CE, ISO9001:2008

Numer modelu: 20-350mm

Zapłata

Szczegóły pakowania: Standardowe pakowanie

Czas dostawy: 60 DNI

Zasady płatności: L/C, T/T, Western Union, MoneyGram

Możliwość Supply: 30 jednostek/rok

Galeria

Flexible PU Foaming Pert Insulation Pipe Extruder Machinery for Underground Pipe System

opis produktu

Flexible PU Foaming Pert Insulation Pipe Extruder Machinery for Underground Pipe System

What is polyurethane foam PERT insulation pipe?
Polyurethane PERT insulation pipe is called flexible insulation pipe in international, Chinese standard name is II type heat-resistant polyethylene (PE-RTII) low-temperature direct buried heating pipe.

One-step pert flexible insulation pipe production line process flow:
Pipe unwinding - unwinding traction - V-shaped wheel conveying - track feeding - encapsulation and film coating - Pouring foaming - foam curing -PE layer O-shaped extrusion - Vacuum suction coating - spray cooling - winding

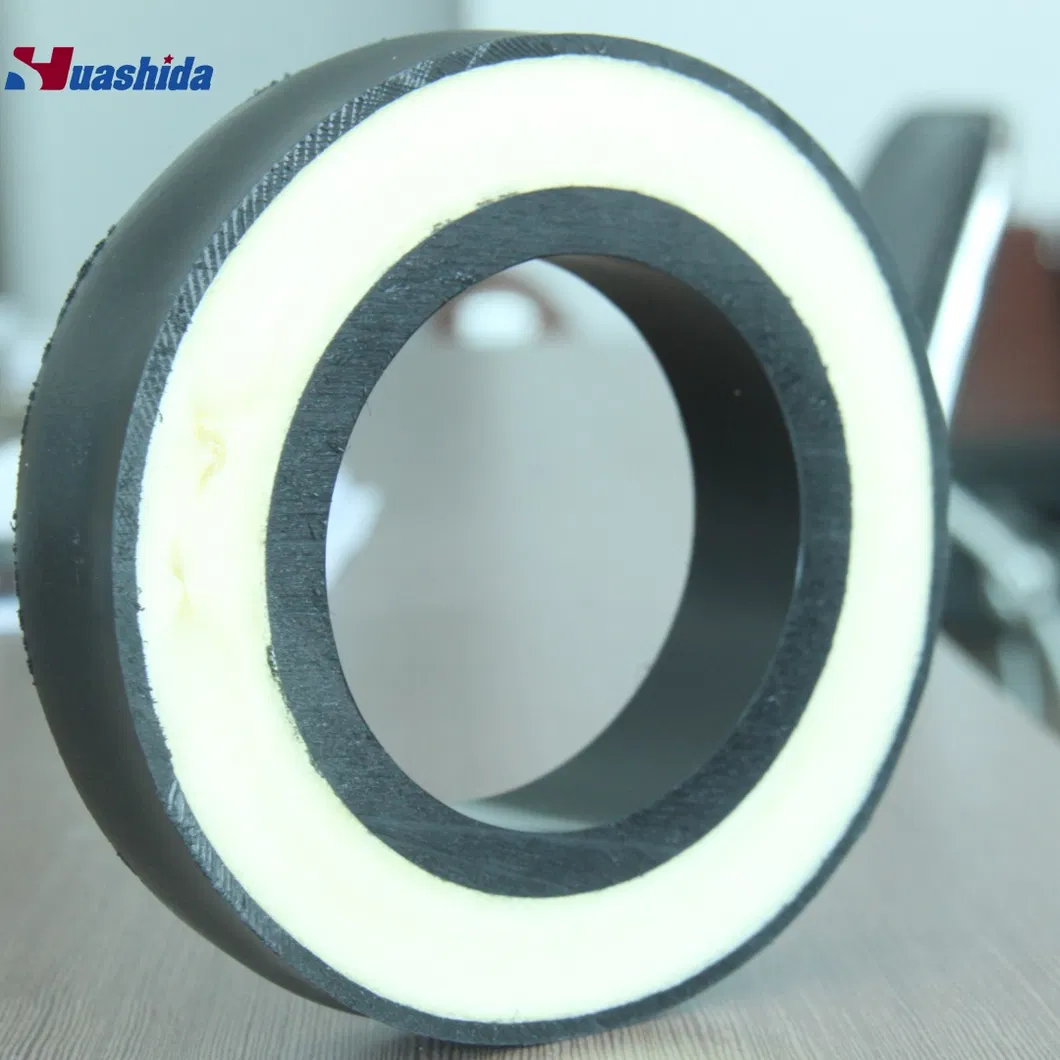

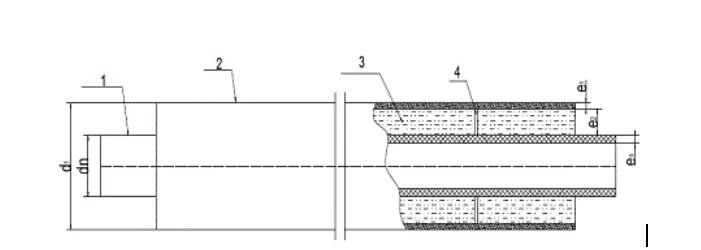

Pipe Structure:
Inner pipe: PE, PE-RT, Steel,PERT-II, PE-Xa
Insulation layer: Polyurethane (PPU)
Outer sheath: HDP
Flexible PU Foaming Pert Insulation Pipe Extruder Machinery for Underground Pipe System 1

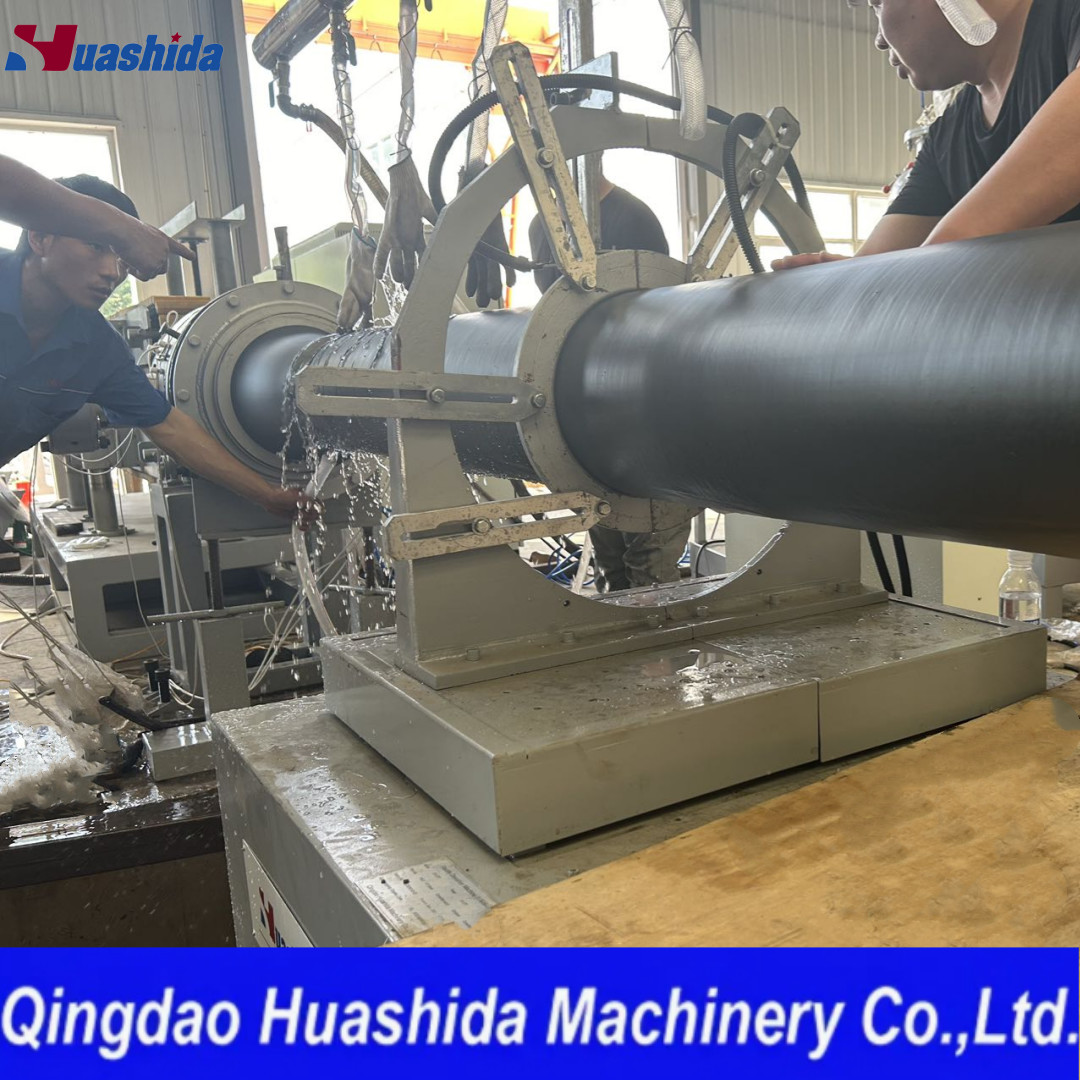

The pre-insulated pipes production line consists of the following components:
1) Production line for inner pressure pipe (PERT, PEX)
2) Inner pipe unwinding device
3) Pipe feeding device
4) Conveyor
5) Pipe centering device
6) Preheating and temperature control
7) Film feeding device
8) High-precision foaming machine
9) Forming machine with temperature control
6) Extruder for casing pipe and water cooling
7) Pull-off device
8) Winding machine

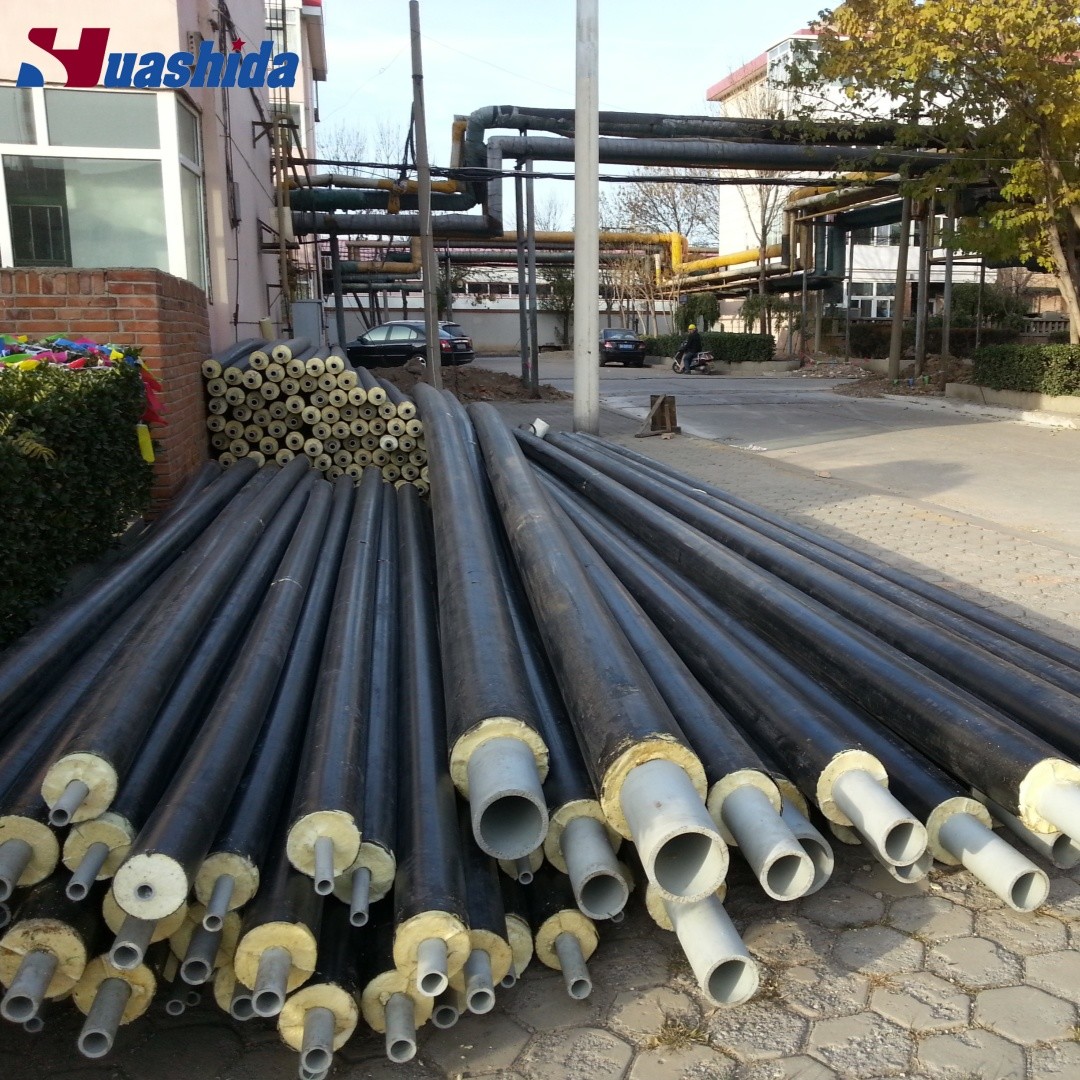

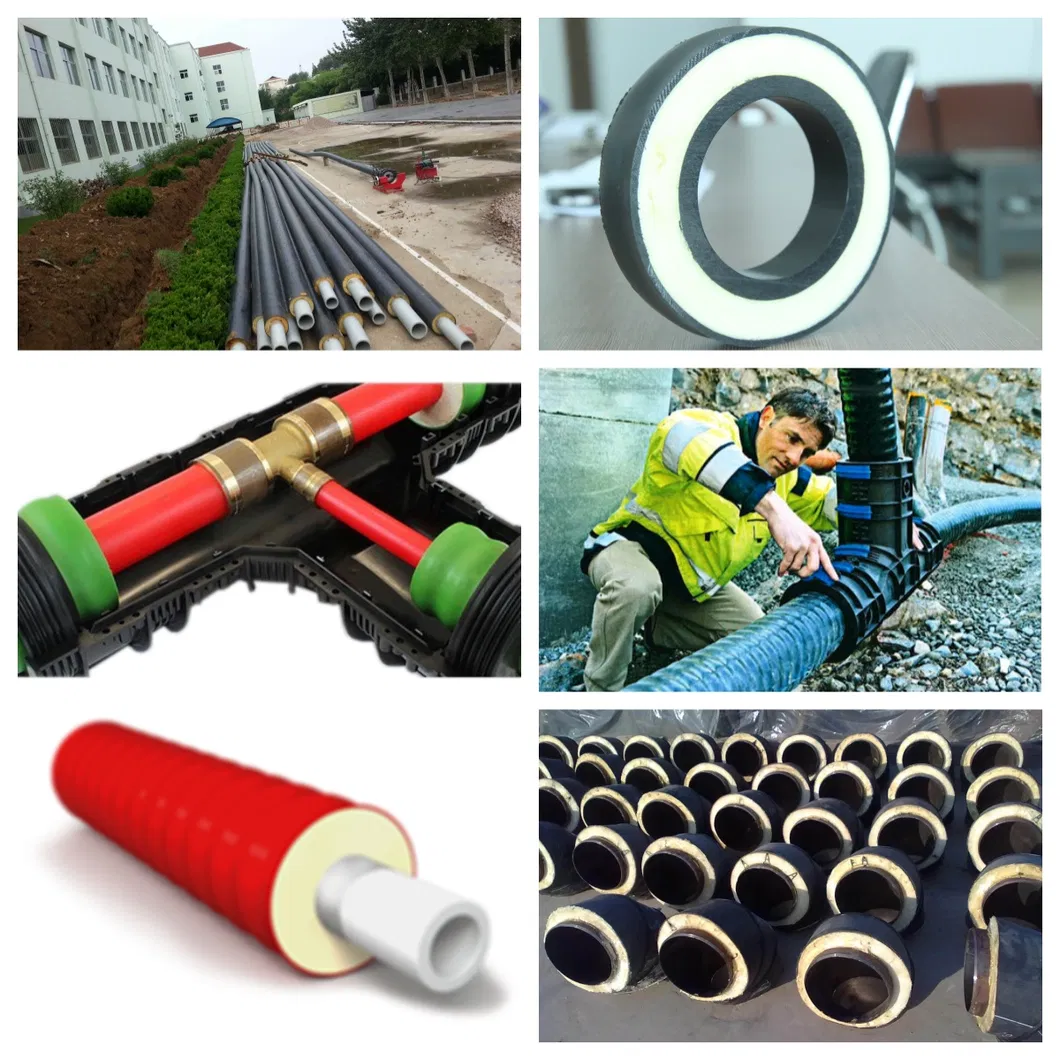

PE-RTII insulation pipe
Flexible PU Foaming Pert Insulation Pipe Extruder Machinery for Underground Pipe System 2

Flexible PU Foaming Pert Insulation Pipe Extruder Machinery for Underground Pipe System 2

It saves the raw materials for using PE-RT II pipe.
Example: Level 2 design pressure: 10 Bar; for cold and hot water transfer in buildings
Selection of different material pipes: the highest PE-RTIIS value; the thinnest wall thickness
Compared to PERT I, PERT II can reduce material use by 15%
Relative to PP-R, PERT II can reduce material use by 30%
Note: According to relevant Chinese national standards and draft

Advantages of the PERT pre-insulated pipe production line:
PERT II Pipes Can Tolerate Temperatures of 110°C
Pipeline smooth, no impurities, no pollution
Heating companies can realize unattended, automated operation
Low temperature heating
60 °C supply water 45 °C backwater to meet the heating demand.
The construction is simple and convenient, and the excavation amount is 40%
Greatly reduce construction costs

Material	s	Dia.(mm)	Wall Thickness(mm)	Wall Thickness Area(m2)	Density(kg/m3)	Length(m)	Weight (kg)	Weight Save PERT/X
PERT II	S3.2	16	2.2	9.5E-05	947	1000	90
PERT I	S2.5	16	2.7	1.1E-04	933	1000	105	-17%
PP-R	S2	16	3.3	1.3E-04	900	1000	118	-31%

PERT II	S3.2	20	2.8	1.5E-04	947	1000	143
PERT eI	S2.5	20	3.4	1.8E-04	933	1000	165	-15%
PP-R	S2	20	4.1	2.0E-04	900	1000	184	-29%

PERT II	S3.2	25	3.5	2.4E-04	947	1000	224
PERT I	S2.5	25	4.2	2.7E-04	933	1000	256	-14%
PP-R	S2	25	5.1	3.2E-04	900	1000	287	-28%

PERT II	S3.2	32	4.4	3.8E-04	947	1000	361
PERT I	S2.5	32	5.4	4.5E-04	933	1000	421	-17%
PP-R	S2	32	6.5	5.2E-04	900	1000	469	-30%

Market Survey
International:
Up to now, there are only a few foreign companies engaged in PERT II cryogenic pipelines, mainly in northwest Europe, Russia and the Middle East.

Flexible PU Foaming Pert Insulation Pipe Extruder Machinery for Underground Pipe System 3

Flexible PU Foaming Pert Insulation Pipe Extruder Machinery for Underground Pipe System 3

Flexible PU Foaming Pert Insulation Pipe Extruder Machinery for Underground Pipe System 4

Flexible PU Foaming Pert Insulation Pipe Extruder Machinery for Underground Pipe System 5

Flexible PU Foaming Pert Insulation Pipe Extruder Machinery for Underground Pipe System 6

Flexible PU Foaming Pert Insulation Pipe Extruder Machinery for Underground Pipe System 7

Flexible PU Foaming Pert Insulation Pipe Extruder Machinery for Underground Pipe System 8
