Name: High-Efficiency Pre-Insulation Pipe Machine PE / PPR / Pert Pipe Extruder Production Line
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 20-350mm
Availability: InStock

cechy Galeria opis produktu Poprosić o wycenę

cechy

specyfikacje

Użycie rur: Sdistrict ciepło/dopływ chłodniczy

Zastosuj do: Postrzegaj elastyczne rurki izolacyjne i wywierają sztywną izolację

Warstwa pieniona: Miękka piana poliuretanowa i sztywna pianka poliuretanowa

Wewnętrzna rura: Materiał PE-XA lub PE-RT II

Podkreślić:

PE Insulation Pipe Extrusion Line

Pre-Insulated Pipe Extrusion Line

Pre Insulation Pipe Extrusion Line

Podstawowe informacje

Miejsce pochodzenia: Qingdao, Chiny

Nazwa handlowa: HUASHIDA

Orzecznictwo: CE, ISO9001:2008

Numer modelu: 20-350mm

Zapłata

Szczegóły pakowania: Standardowe pakowanie

Czas dostawy: 60 DNI

Zasady płatności: L/C, T/T, Western Union, MoneyGram

Możliwość Supply: 30 jednostek/rok

Galeria

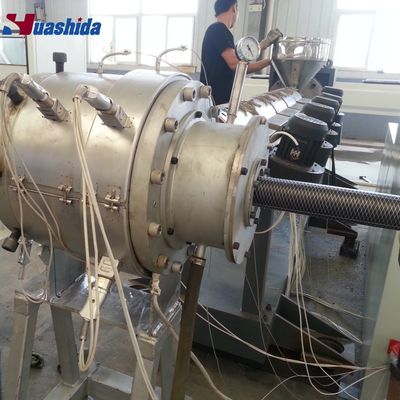

High-Efficiency Pre-Insulation Pipe Machine PE / PPR / Pert Pipe Extruder Production Line

opis produktu

High-Efficiency Pre-Insulation Pipe Machine PE/PPR/PERT Pipe Extruder Production Line

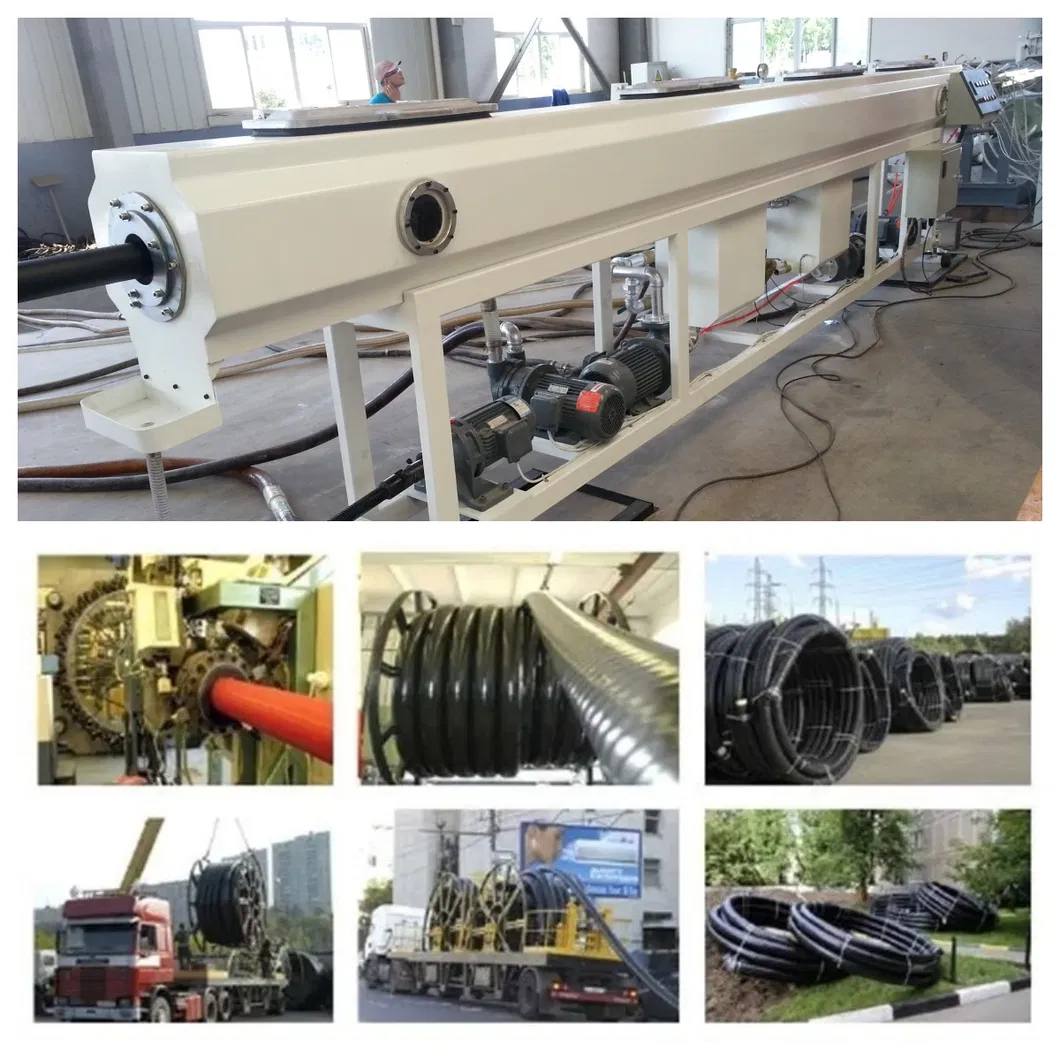

Continue polyurethane foam flexible insulation pipe Extrusion line, makes pipe diameter ranging from 20 to 350mm.

The continue method is a relatively new advanced manufacturing technology. The inner tube, that is, the working tube (usually used of PE-RT, PE material) and the polyurethane foam mixture are continuously injected into the filling area, and the film is covered, followed by the outer protective tube covering the polyurethane insulation layer. Compared with the traditional technology, the continue method can reduce the density of the filled foam and reduce the wall thickness of the outer protective tube, thereby saving costs for the pipe manufacturer.
Continue method is applicable to both hose insulation and rigid insulation pipe.

What is polyurethane foam PERT insulation pipe?
Polyurethane PERT insulation pipe is called flexible insulation pipe in international, Chinese standard name is II type heat-resistant polyethylene (PE-RTII) low-temperature direct buried heating pipe.
High-Efficiency Pre-Insulation Pipe Machine PE / PPR / Pert Pipe Extruder Production Line 0

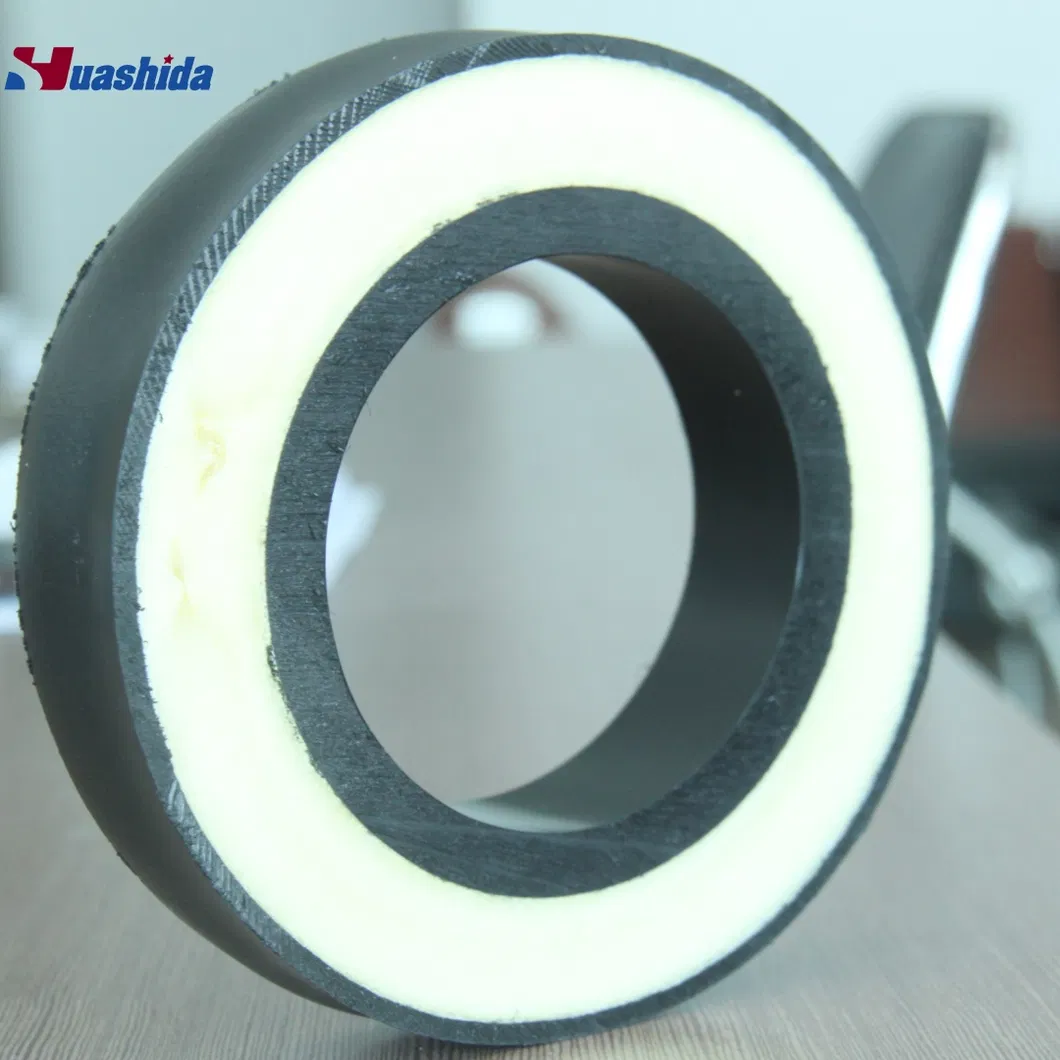

The system consists of three integrated layers:
Inner service pipe (PE-Xa or PE-RT II material)
Polyurethane foam insulation layer
HDPE outer protective casing

PE-RTII insulation pipe
High-Efficiency Pre-Insulation Pipe Machine PE / PPR / Pert Pipe Extruder Production Line 1

High-Efficiency Pre-Insulation Pipe Machine PE / PPR / Pert Pipe Extruder Production Line 1

It saves the raw materials for using PE-RT II pipe.
Example: Level 2 design pressure: 10 Bar; for cold and hot water transfer in buildings
Selection of different material pipes: the highest PE-RTIIS value; the thinnest wall thickness
Compared to PERT I, PERT II can reduce material use by 15%
Relative to PP-R, PERT II can reduce material use by 30%
Note: According to relevant Chinese national standards and draft

Advantages of the PERT pre-insulated pipe production line:
PERT II Pipes Can Tolerate Temperatures of 110°C
Pipeline smooth, no impurities, no pollution
Heating companies can realize unattended, automated operation
Low temperature heating
60 °C supply water 45 °C backwater to meet the heating demand.
The construction is simple and convenient, and the excavation amount is 40%
Greatly reduce construction costs

Material	s	Dia.(mm)	Wall Thickness(mm)	Wall Thickness Area(m2)	Density(kg/m3)	Length(m)	Weight (kg)	Weight Save PERT/X
PERT II	S3.2	16	2.2	9.5E-05	947	1000	90
PERT I	S2.5	16	2.7	1.1E-04	933	1000	105	-17%
PP-R	S2	16	3.3	1.3E-04	900	1000	118	-31%

PERT II	S3.2	20	2.8	1.5E-04	947	1000	143
PERT eI	S2.5	20	3.4	1.8E-04	933	1000	165	-15%
PP-R	S2	20	4.1	2.0E-04	900	1000	184	-29%

PERT II	S3.2	25	3.5	2.4E-04	947	1000	224
PERT I	S2.5	25	4.2	2.7E-04	933	1000	256	-14%
PP-R	S2	25	5.1	3.2E-04	900	1000	287	-28%

PERT II	S3.2	32	4.4	3.8E-04	947	1000	361
PERT I	S2.5	32	5.4	4.5E-04	933	1000	421	-17%
PP-R	S2	32	6.5	5.2E-04	900	1000	469	-30%

Can be customized production.Meet different customer requirements, lifetime technical support and maintenance services.

High-Efficiency Pre-Insulation Pipe Machine PE / PPR / Pert Pipe Extruder Production Line 2

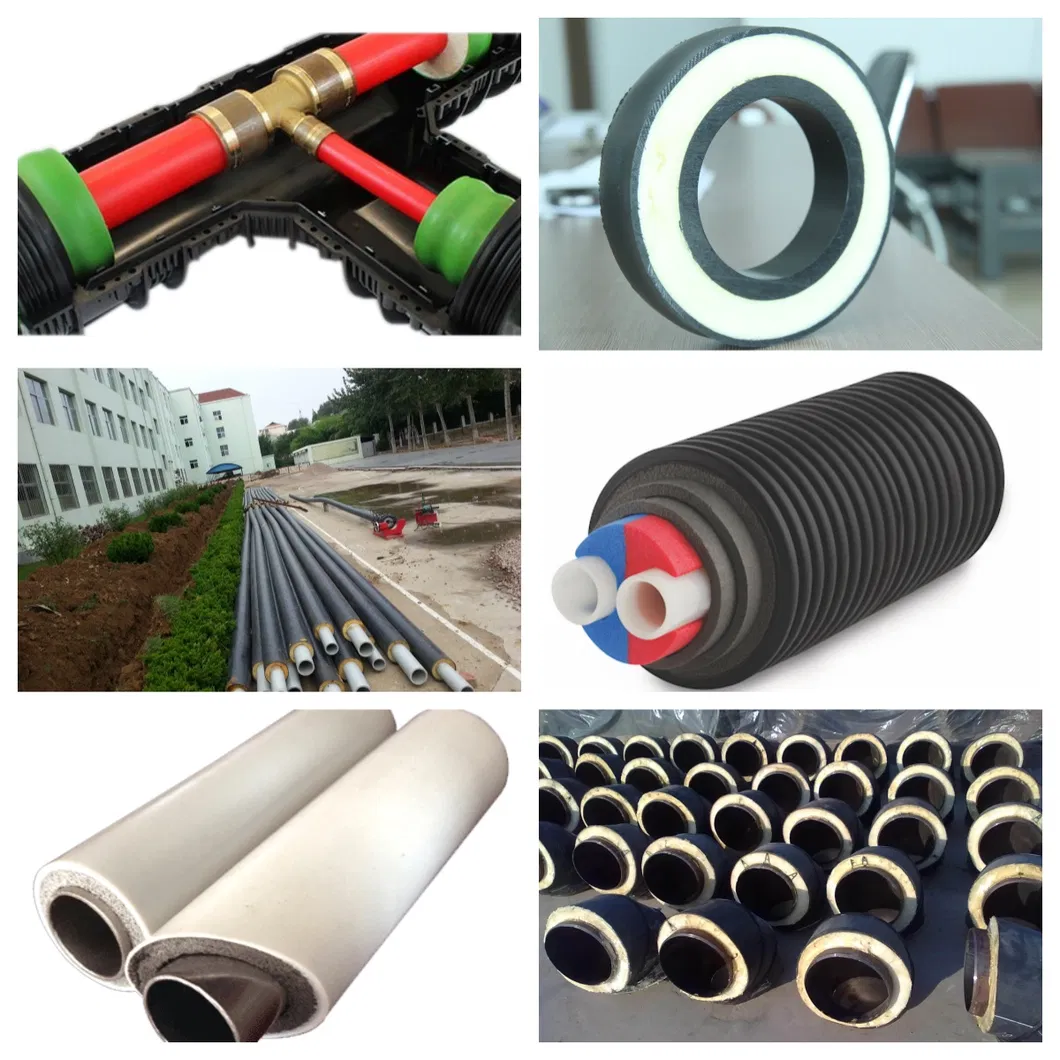

District heating and cooling networks
Residential and commercial building pipelines
Industrial piping systems
Transportation of hot and cold fluids

High-Efficiency Pre-Insulation Pipe Machine PE / PPR / Pert Pipe Extruder Production Line 5

High-Efficiency Pre-Insulation Pipe Machine PE / PPR / Pert Pipe Extruder Production Line 6

High-Efficiency Pre-Insulation Pipe Machine PE / PPR / Pert Pipe Extruder Production Line 7

High-Efficiency Pre-Insulation Pipe Machine PE / PPR / Pert Pipe Extruder Production Line 8
