Name: PVC Air Conditioner Flexible Rubber Insulation Tubes Extrusion Machine Production Line
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 1200,1500
Availability: InStock

cechy Galeria opis produktu Poprosić o wycenę

cechy

specyfikacje

Średnica rury: 6-50mm

szerokość arkusza: 500-1500mm

Elastyczna produkcja: Inteligentna produkcja

Użycie: Protector Cooper Condition

Podkreślić:

Insulation tube / sheet Production Line

Foam Insulation Pipe Extrusion Line

Foam Insulation Pipe Production Line

Podstawowe informacje

Miejsce pochodzenia: Qingdao, Chiny

Nazwa handlowa: HSD

Orzecznictwo: CE

Numer modelu: 1200,1500

Zapłata

Szczegóły pakowania: Standardowy pakiet

Czas dostawy: 60 DNI

Zasady płatności: L/C, T/T, Western Union, MoneyGram

Możliwość Supply: 100 jednostek/rok

Galeria

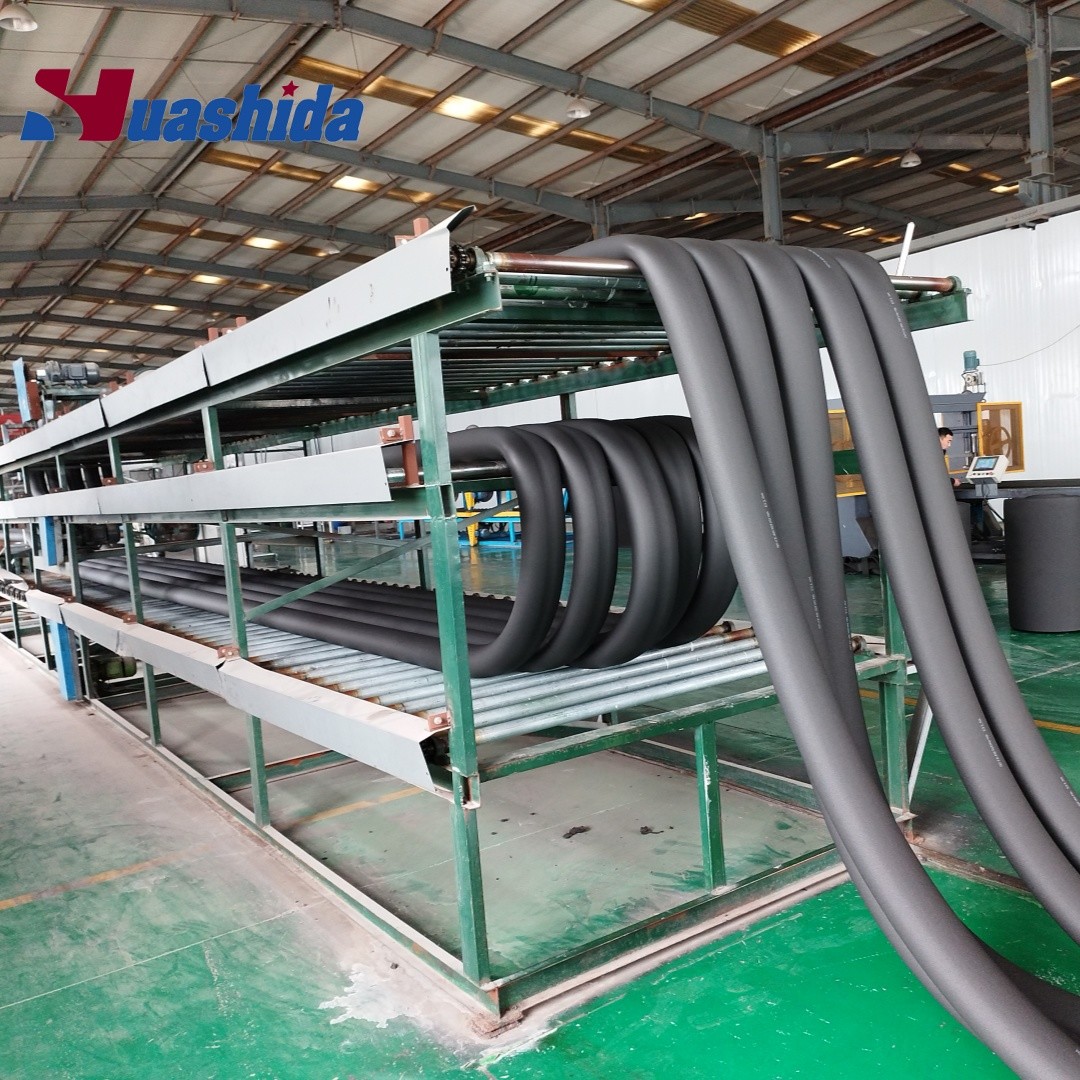

PVC Air Conditioner Flexible Rubber Insulation Tubes Extrusion Machine Production Line

opis produktu

PVC Air Conditioner Flexible Rubber Insulation Tubes Extrusion Machine Production Line

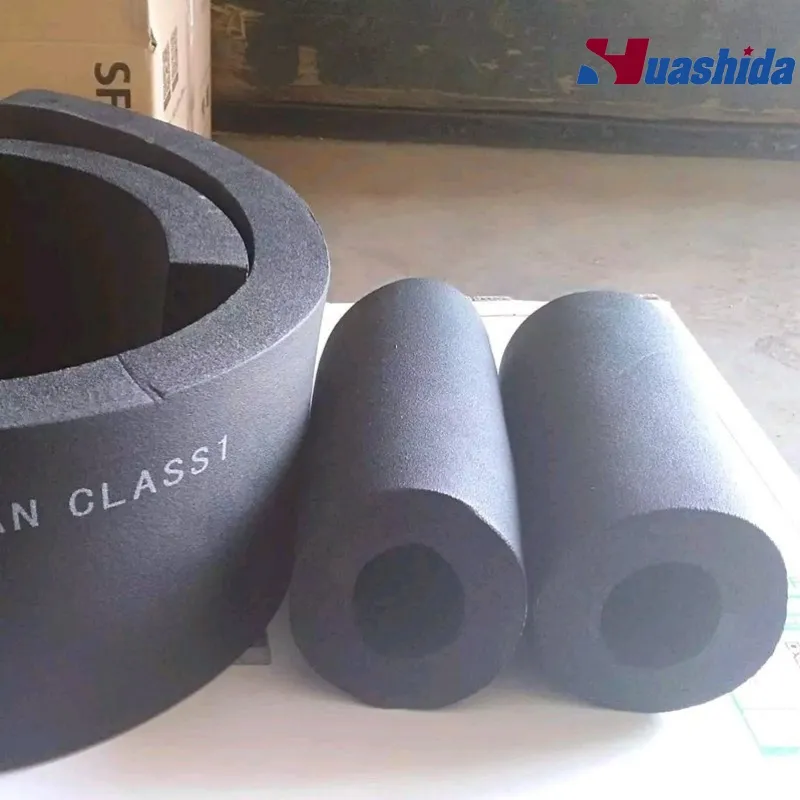

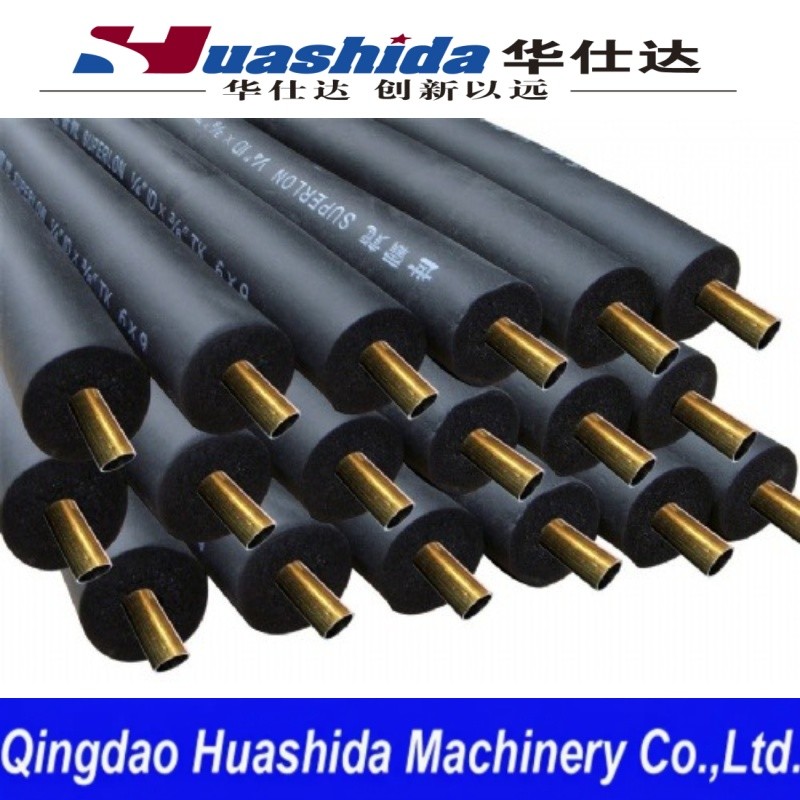

Qingdao Huashida Machinery Co., Ltd. is special manufacture in the production of rubber extruder, air-conditioning and heat-insulating pipe equipment, flat-panel foaming lines, and rubber-plastic foam insulation pipe equipment. The rubber and plastic sponge insulation materials are made of acrylonitrile-butadiene rubber and polyvinyl chloride. A variety of high-quality auxiliary materials, soft high-grade insulation energy-saving materials foamed by special processes, absolutely not containing chlorofluorocarbons. This product has a soft, resistant to bending, cold, heat, flame retardant, waterproof, low thermal conductivity, shock absorption, sound absorption and other excellent performance.

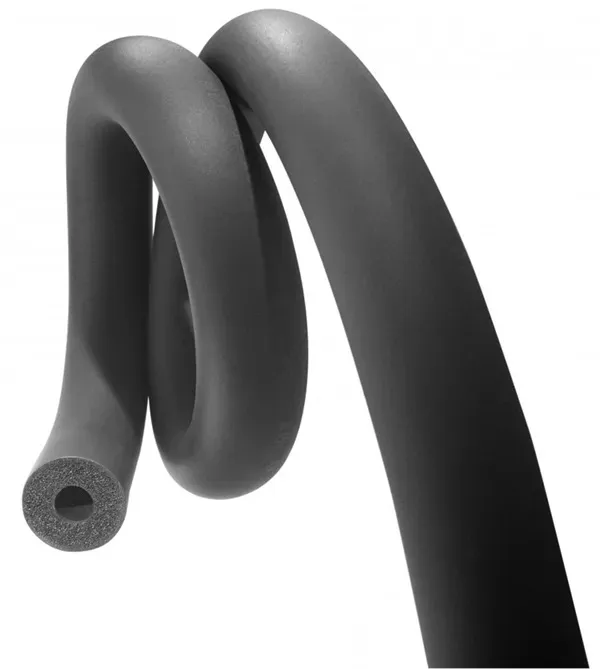

Release form: pipes and sheets

The production process:

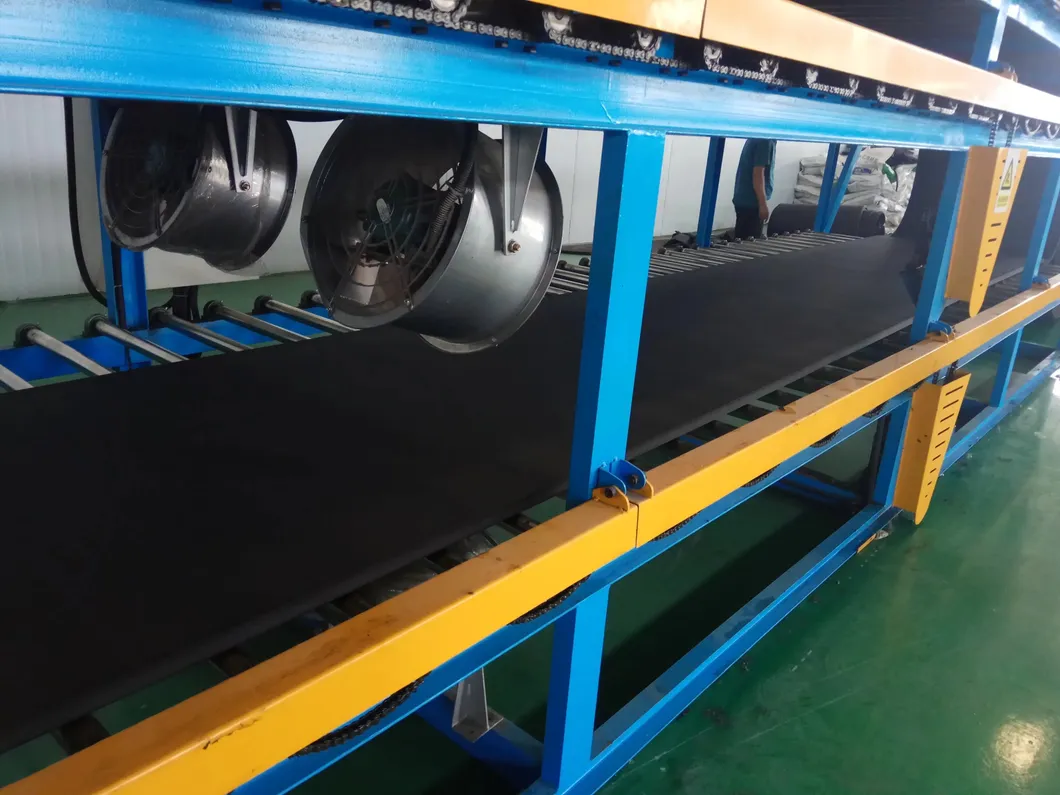

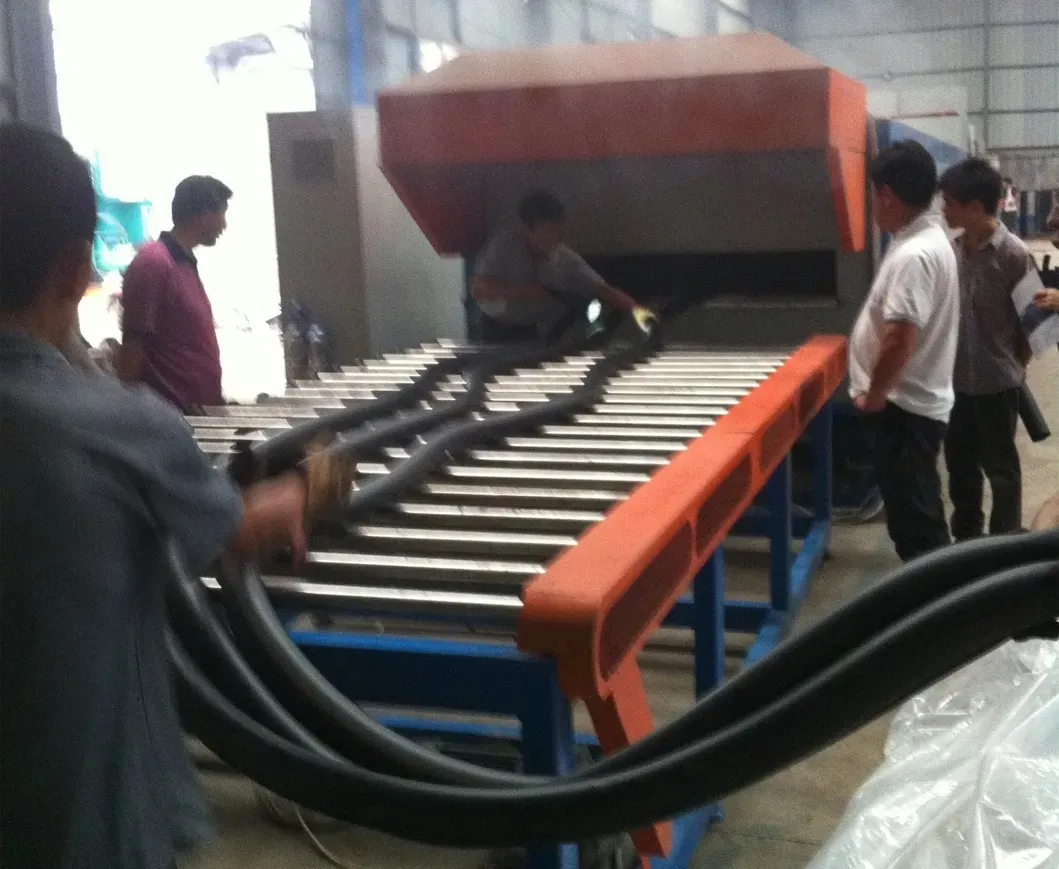

Internal Mixer → Open Mill → Extruder → Foaming → Tractor & cutter

The rubber and plastic sponge foam insulation materials are made of acrylonitrile-butadiene rubber and polyvinyl chloride with a variety of high-quality auxiliary materials by extrusion and foaming process, free of chlorofluorocarbons.

Advantage:

1.    Automatic continuous production line with the latest technology
2.    It is not prone to aging and can extend the service life of the pipeline system
3.    It can adapt to various complex pipe shapes and sizes and is flexible to install.

Application:

It can be widely used in central air-conditioning, construction, chemical, pharmaceutical, textile, metallurgy, shipbuilding, vehicles, appliances and other types of industries and sectors of hot and cold media pipeline, container, can achieve lower cold loss and heat loss effects. As the material is soft, bending resistance, ect., can be processed produce the ideal insulation material for fitness equipment, medical equipment and the indoor and outdoor pipe in solar heating system

Equipment List

Equipment List

No.	Equipment Name	quantity	unit
1	Bale Cutter	1	unit
2	Internal Mixer	1	unit
3	Bucket Elevator	1	unit
4	Open Mill	1	unit

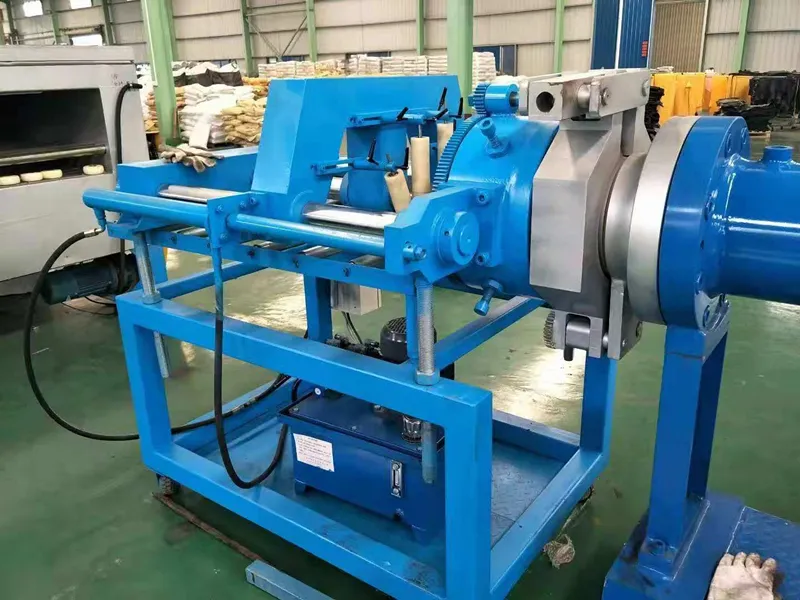

5	XSJ-120 Cold feed rubber Extruder (XSJ-120)	1	unit
6	Extruder head board extrude head One in three out pipe extrude head One in two out pipe extrude head One in six out pipe extrude head	1 1 1 1	unit
7	Transition roller 1.5m	1	unit
8	(L 6000mm,Inner Width 1000mm)Far infrared foaming furnace	1	unit

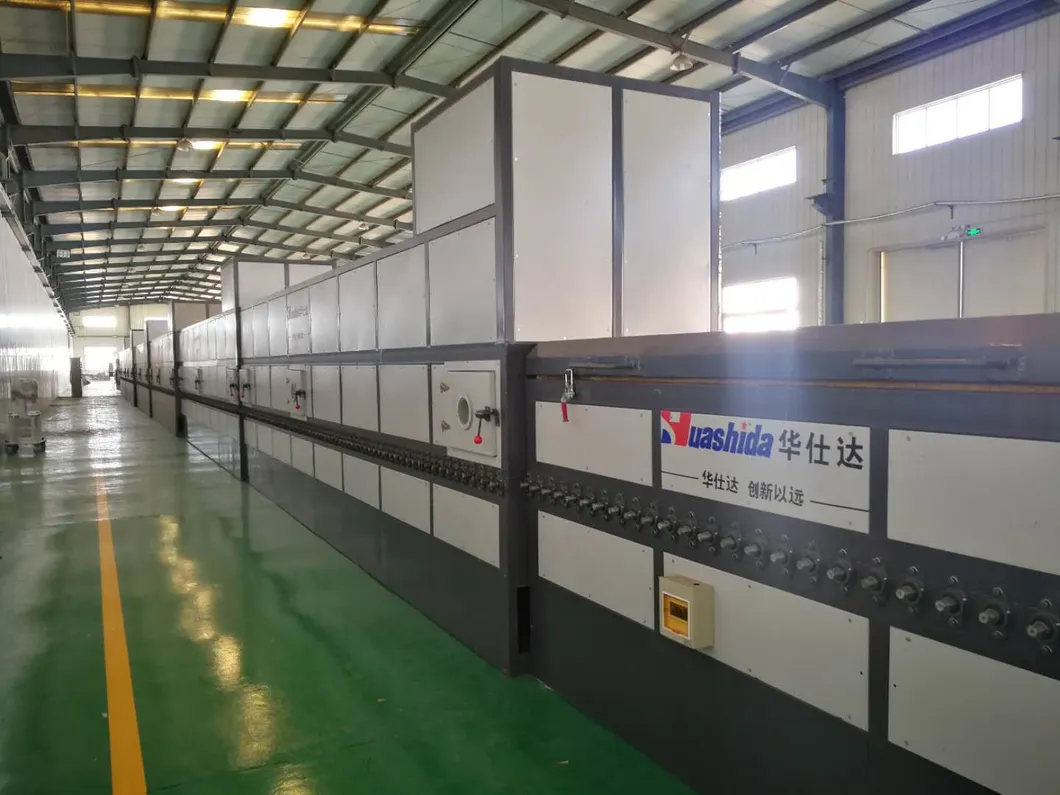

9	Hot air foaming furnace 2 (L 8000mm,Inner Width 1000mm)	2	unit
10	Hot air foaming furnace 3 (L 8000mm,Inner Width 1200mm)	1	unit
11	Hot air foaming furnace 4 (L 8000mm,Inner Width 1200mm)	1	unit
12	Hot air foaming furnace 5 (L 8000mm,Inner Width 1500mm)	1	unit
13	Hot air foaming furnace 6 (L 8000mm,Inner Width 1700mm)	1	unit
14	Tractor(L:4000mm)	1	unit
15	Sheet cutting machine	1	unit

PVC Air Conditioner Flexible Rubber Insulation Tubes Extrusion Machine Production Line 6

PVC Air Conditioner Flexible Rubber Insulation Tubes Extrusion Machine Production Line 7

PVC Air Conditioner Flexible Rubber Insulation Tubes Extrusion Machine Production Line 8

PVC Air Conditioner Flexible Rubber Insulation Tubes Extrusion Machine Production Line 9
